Name: ASTA Grating
Brand: TLC
SKU: 290221
Availability: InStock

ASTA Grating

Features:

Number of steps for heights up to 400 cm
Colour of the steel structure: galvanised or 9 RAL colours
Railing design: choice of 5 models
Platform variants for different installation situations

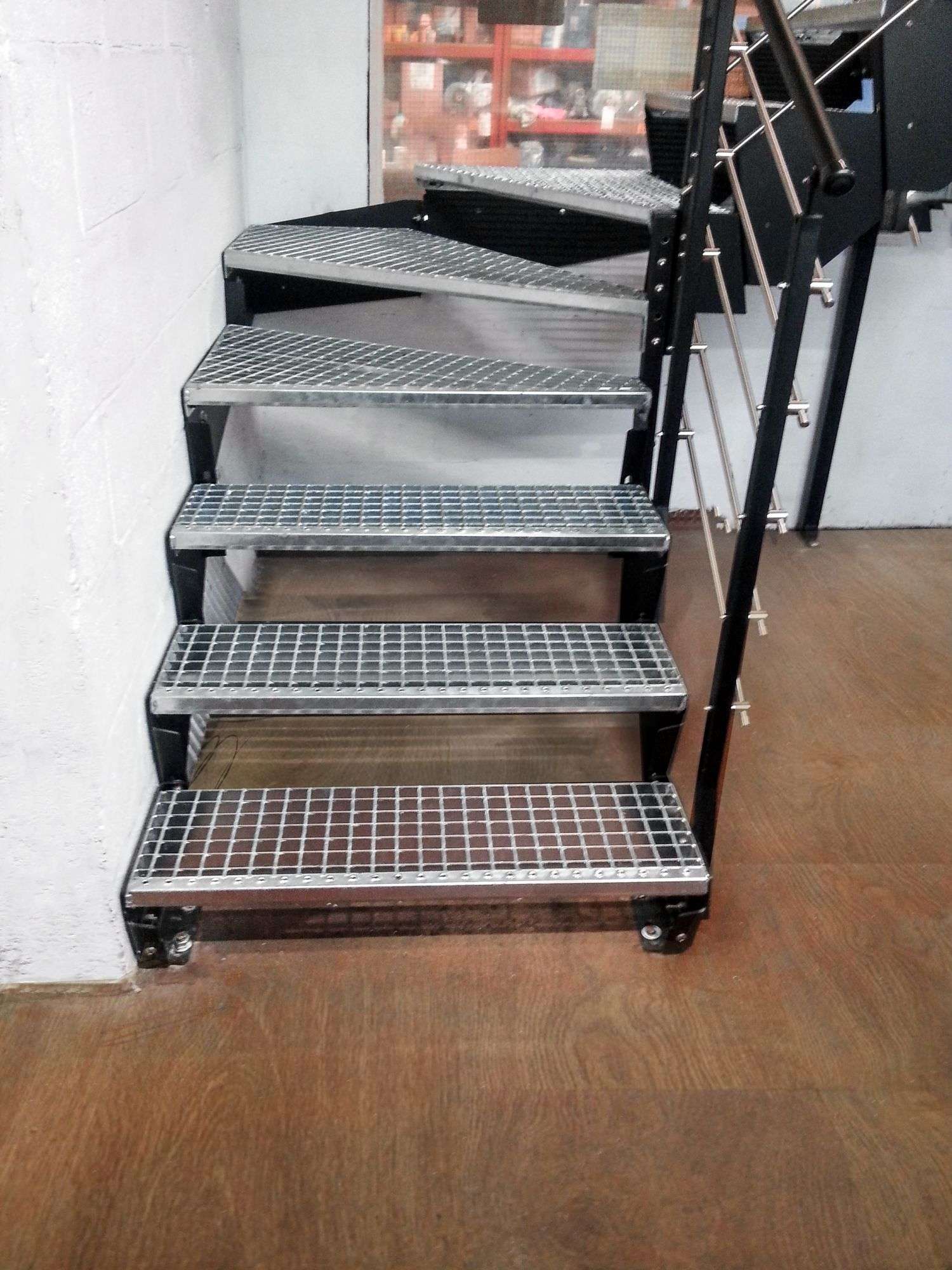

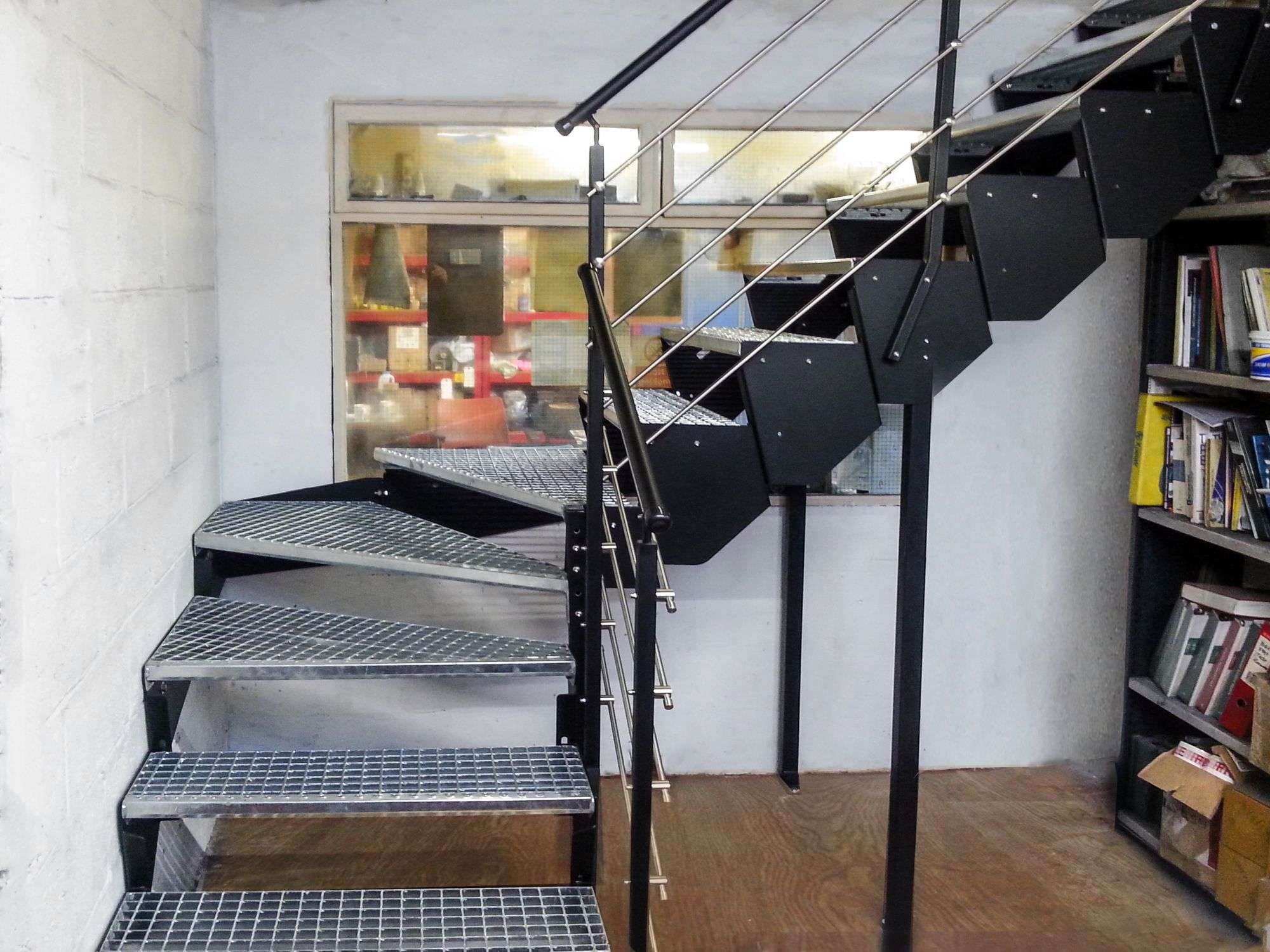

90° bend for right-angled stairways

Brand: TLC (Sweden / Poland)

Delivery time: 3-4 weeks

Colour Construction

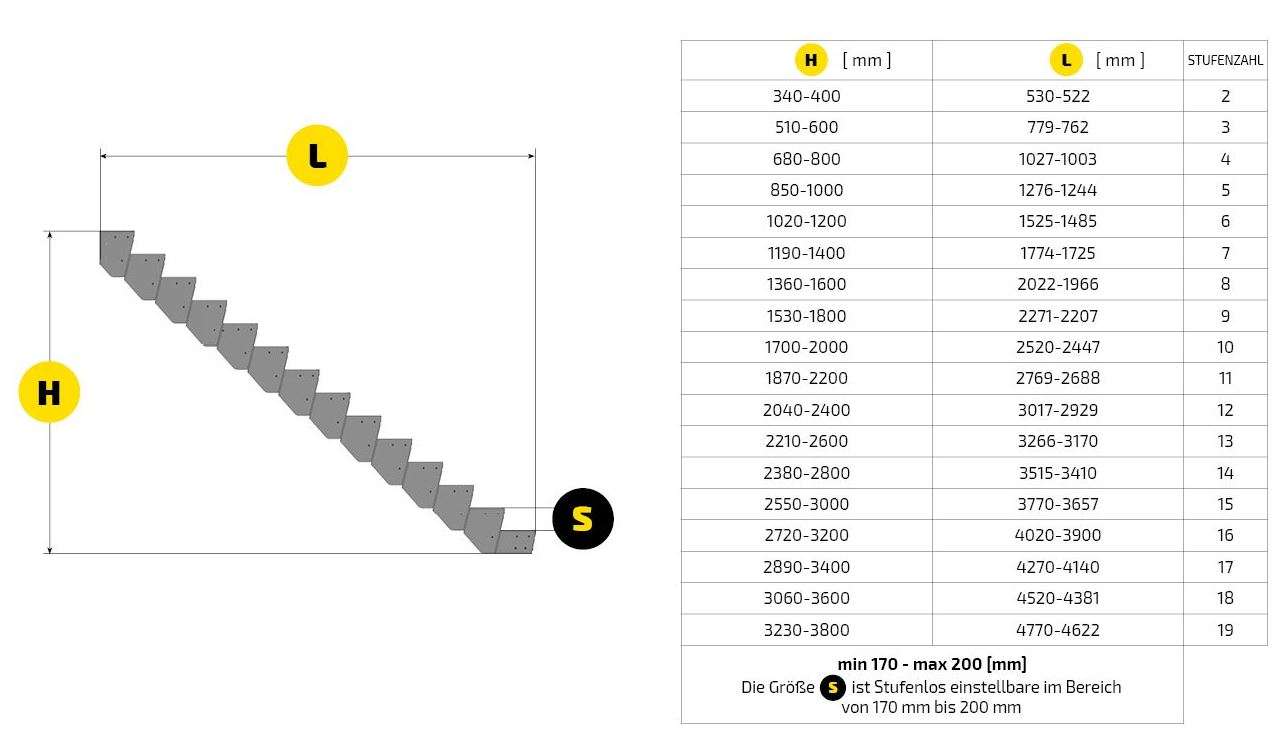

Floor height / number of steps

Stair railings

Clear

Description

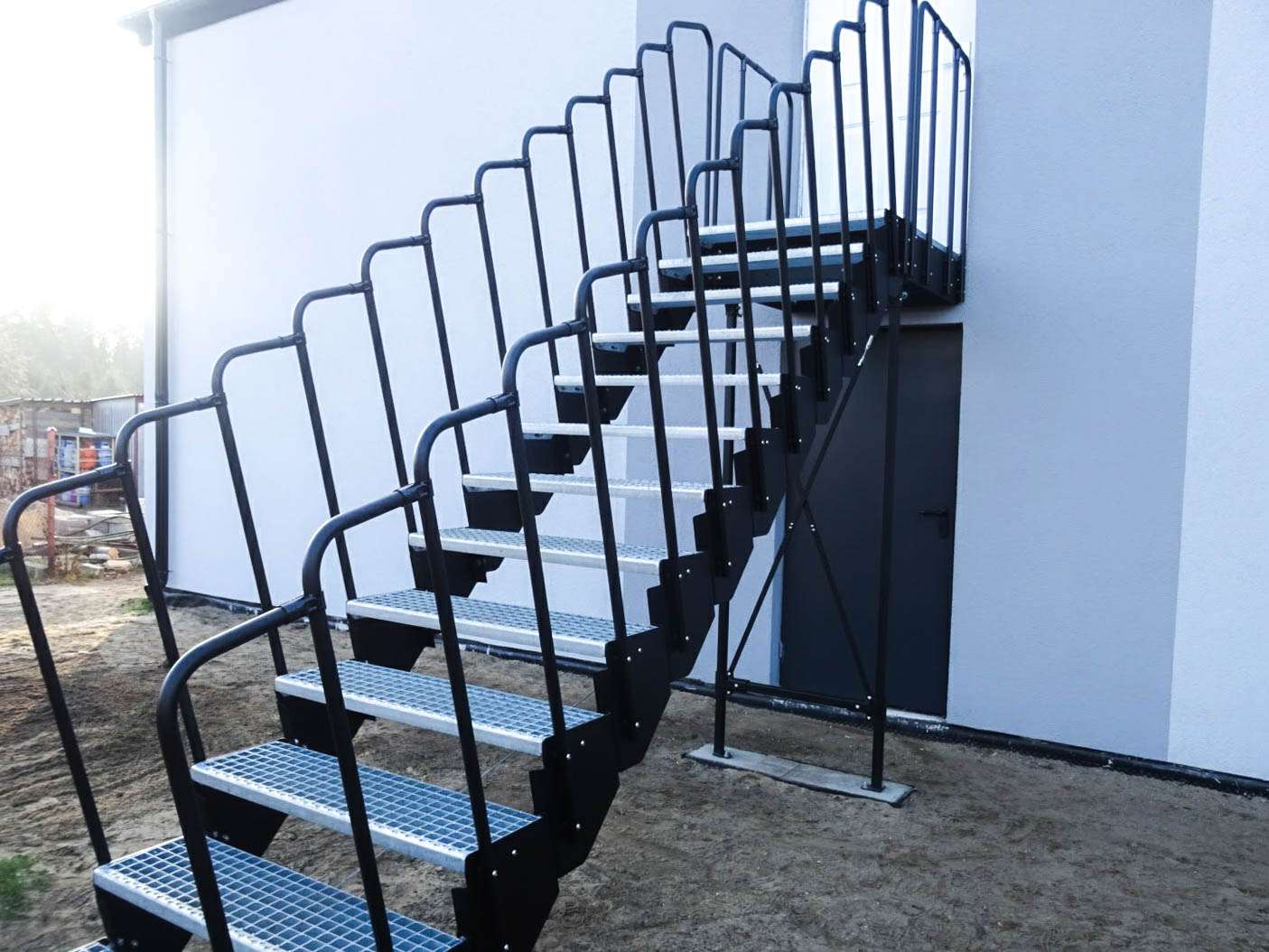

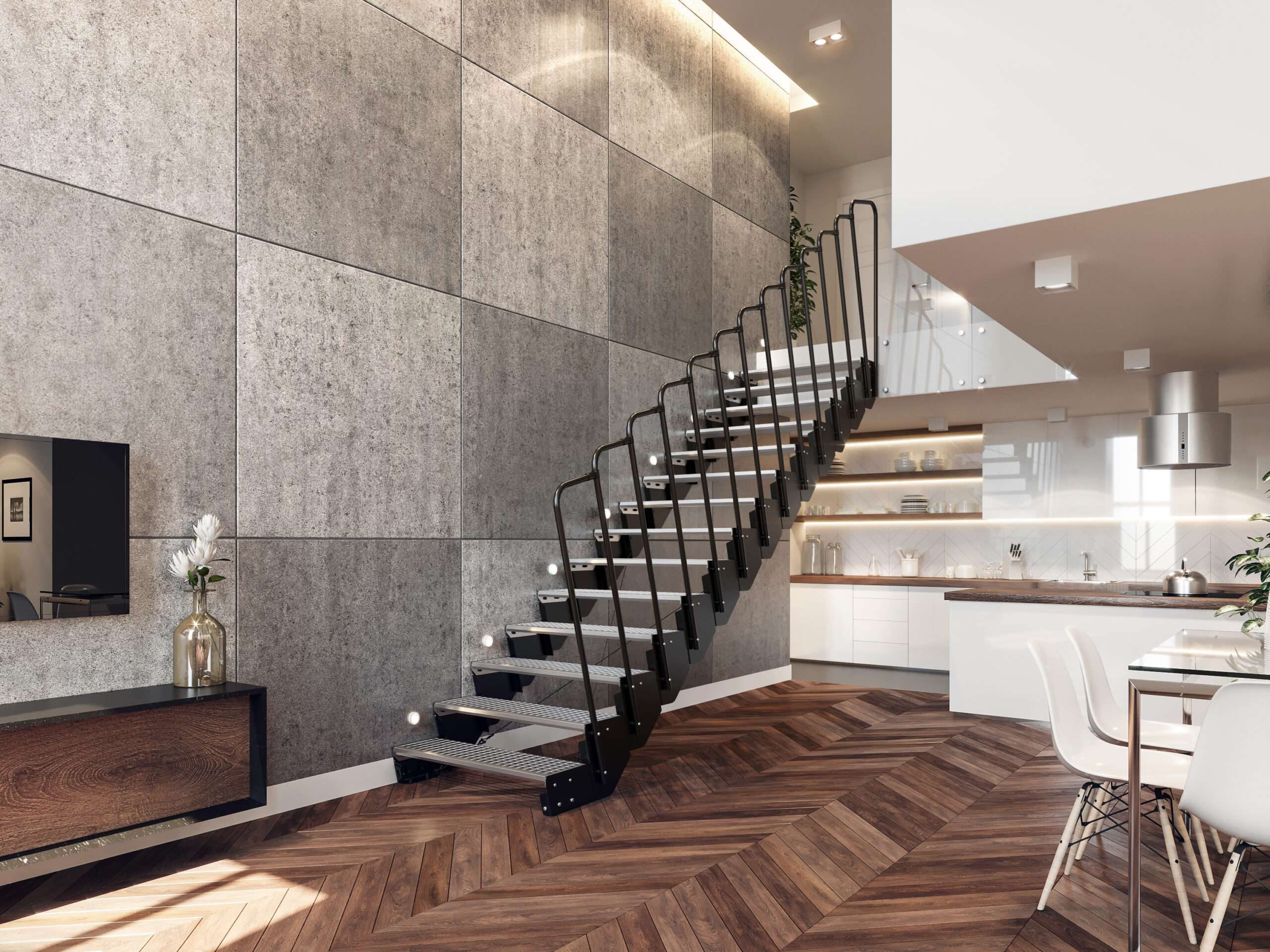

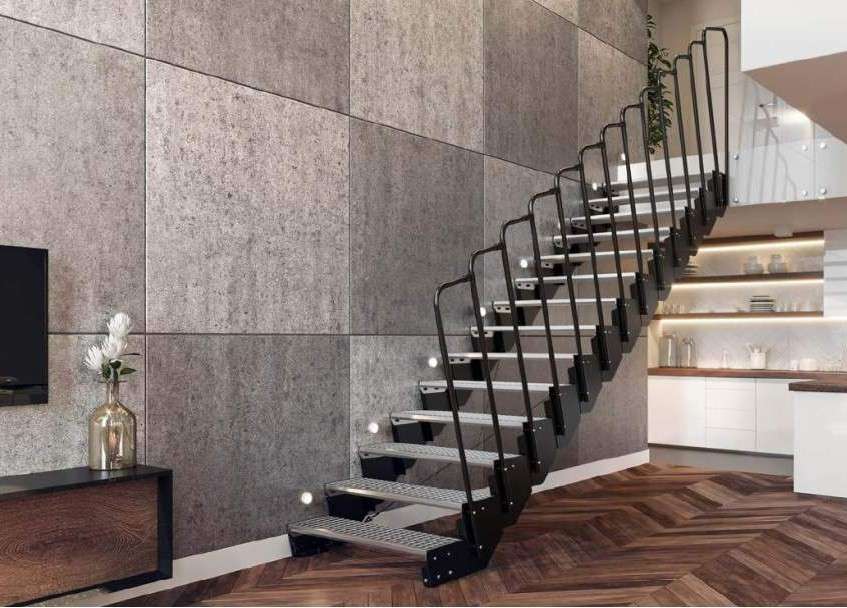

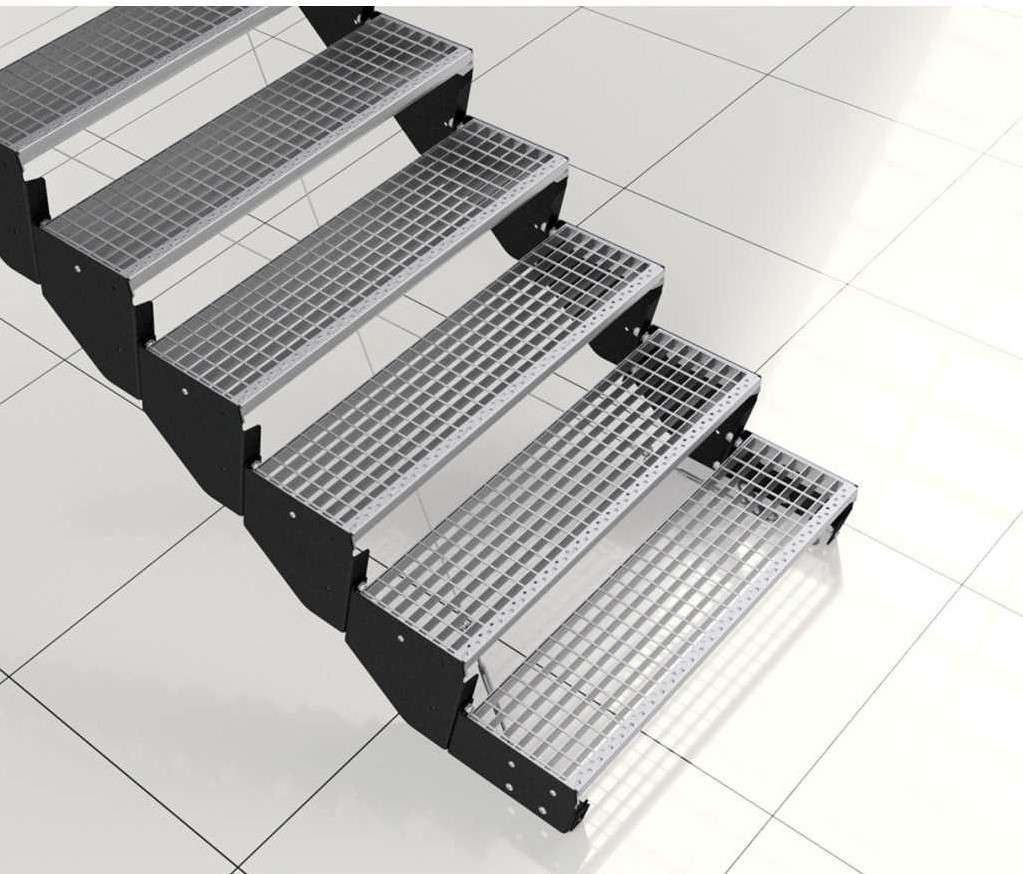

Open modular steel stairs offer a flexible, durable and aesthetic solution for indoor and outdoor use. The construction is based on robust lateral steel modules that are screwed together to form a particularly stable double structure. Thanks to the galvanised lattice steps , the stairs are weather-resistant, non-slip and ideal for intensive use.

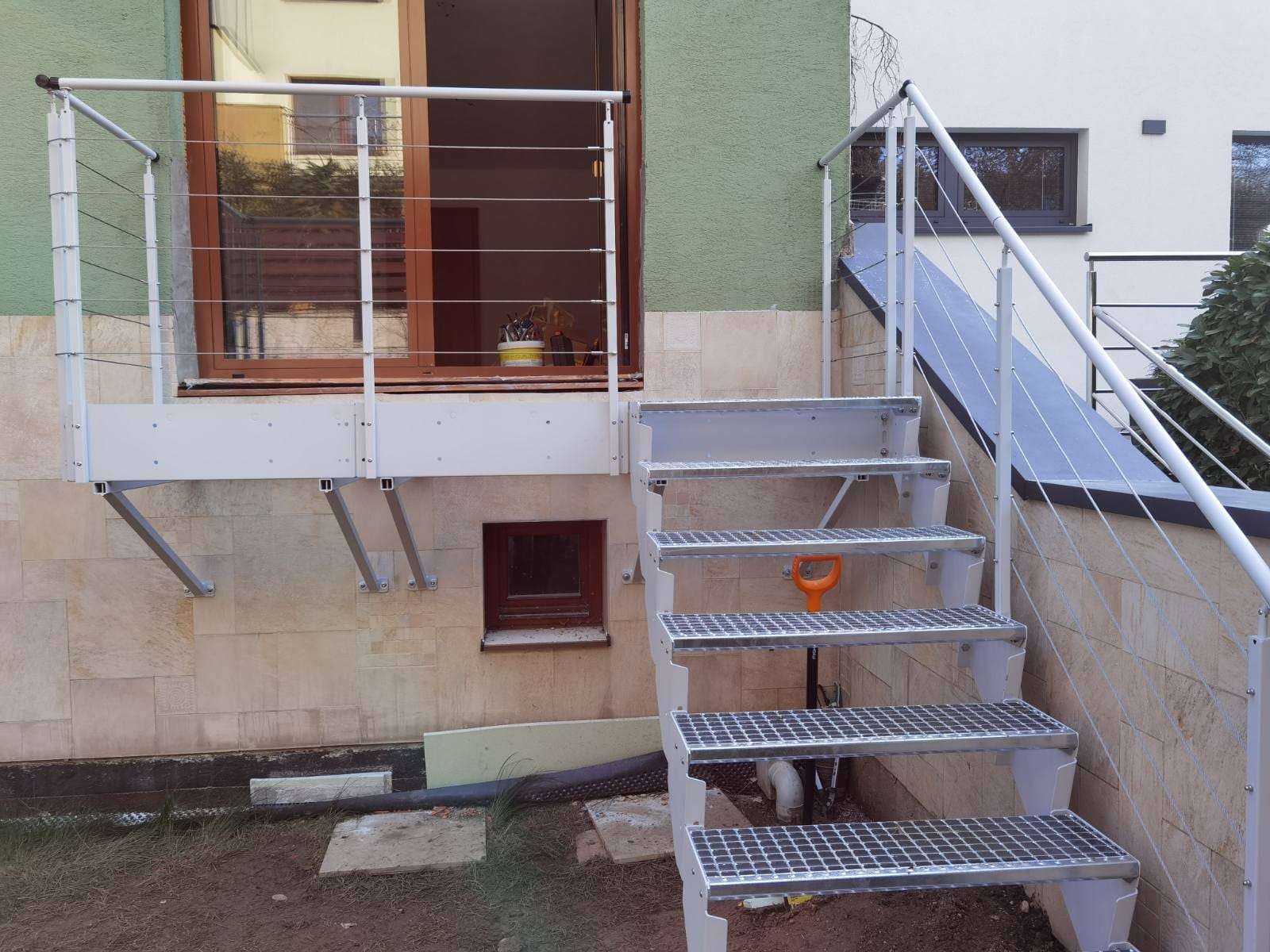

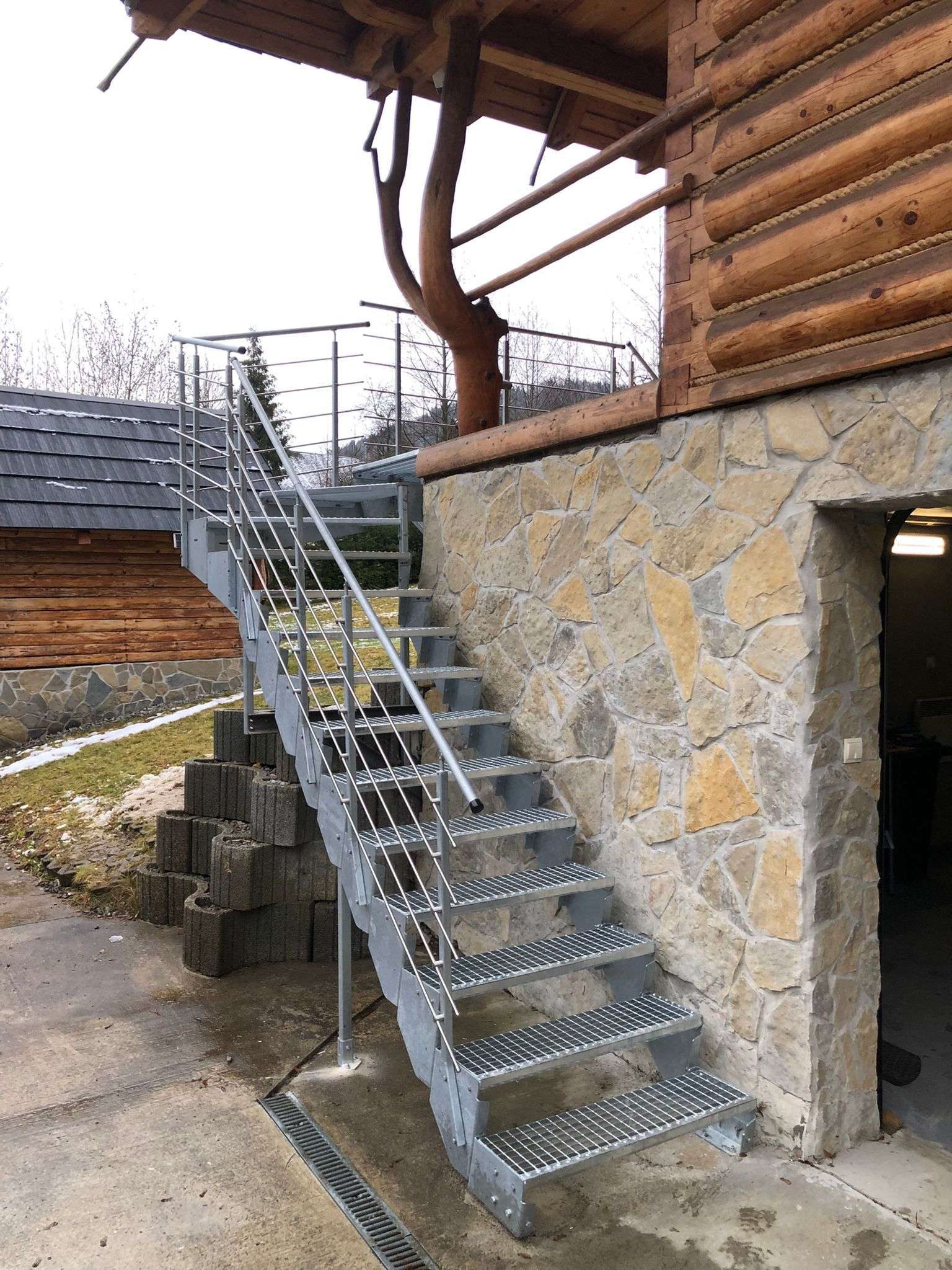

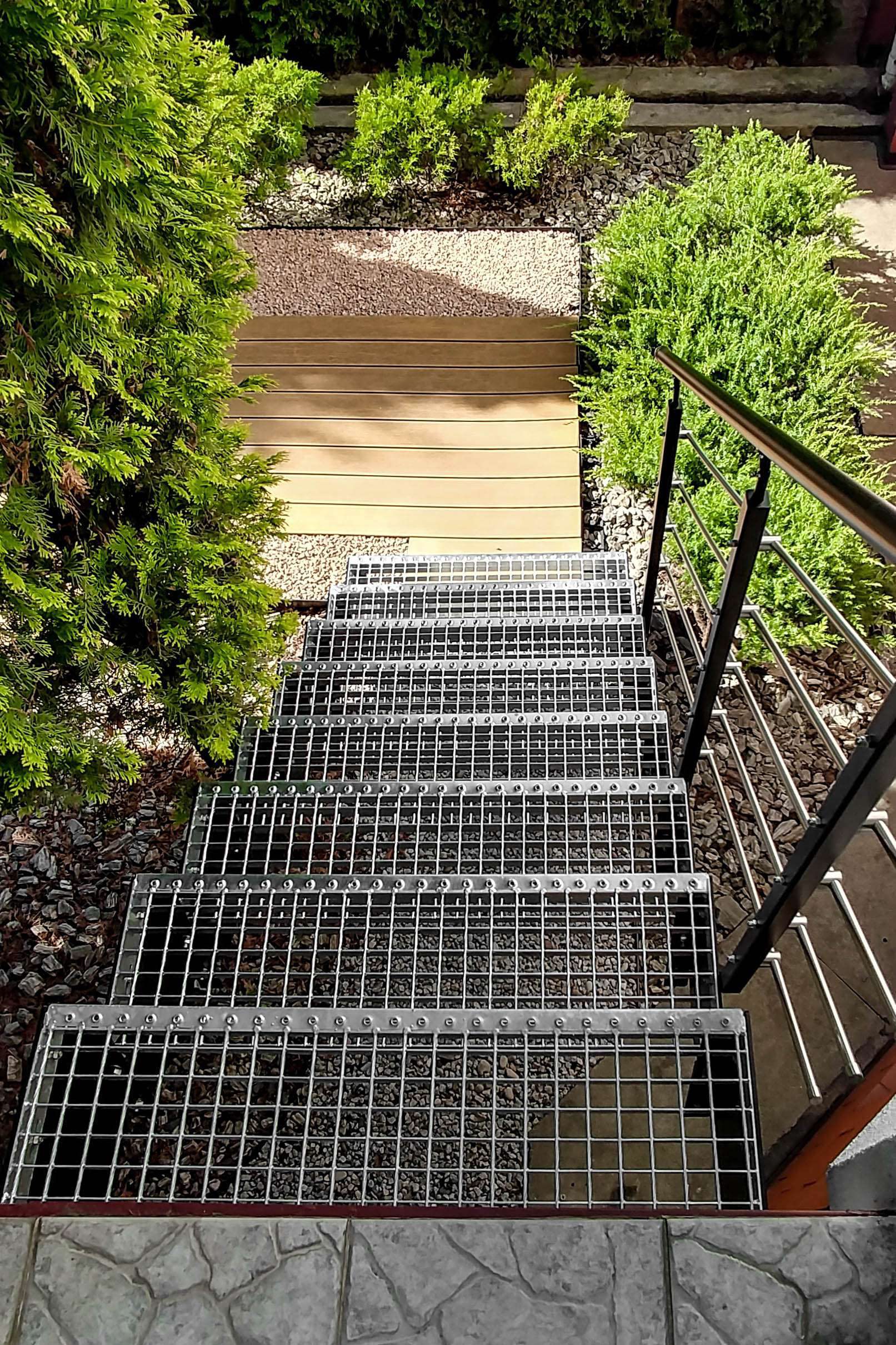

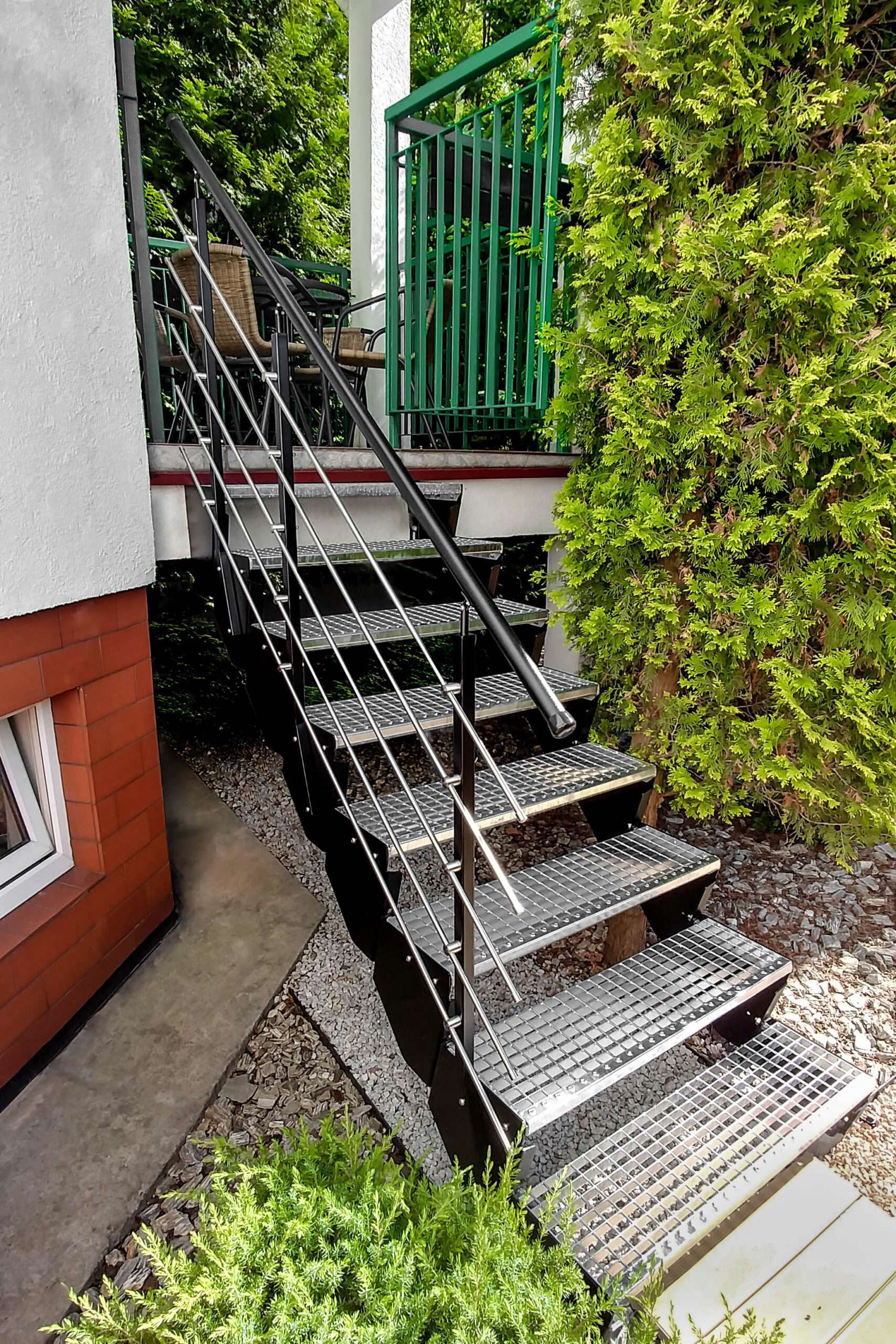

Ideal as an outdoor staircase, industrial staircase or access staircase – durable, safe and individually adaptable.

Additional information

Scope of application	Outside, Inside
Fastening	Ceiling
Execution	Straight
Step material	Grating
Railing rods	Steel
Handrail	Steel
Colour Construction	Black, Blue, Brown, Galvanized, Green, Grey, Light Grey, Light Grey RAL 7047, Red, White
Maximale Geschoßhöhe bis	400 cm

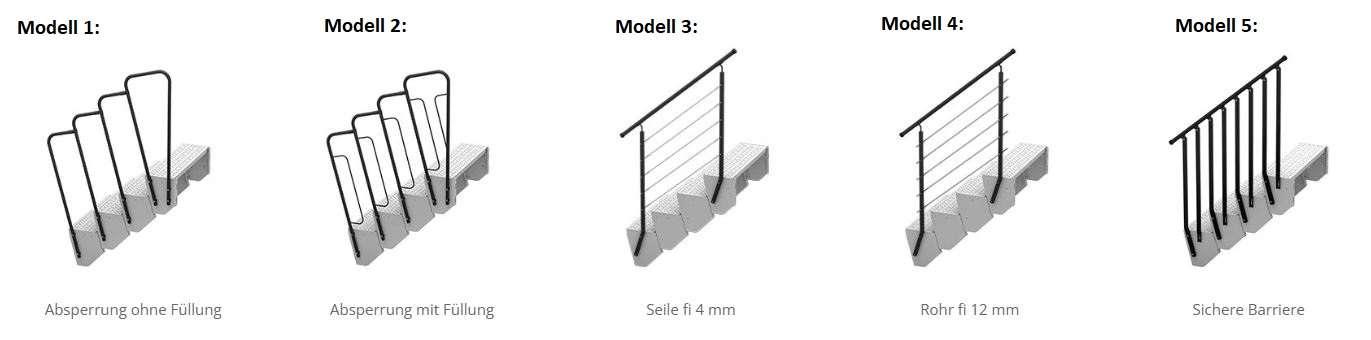

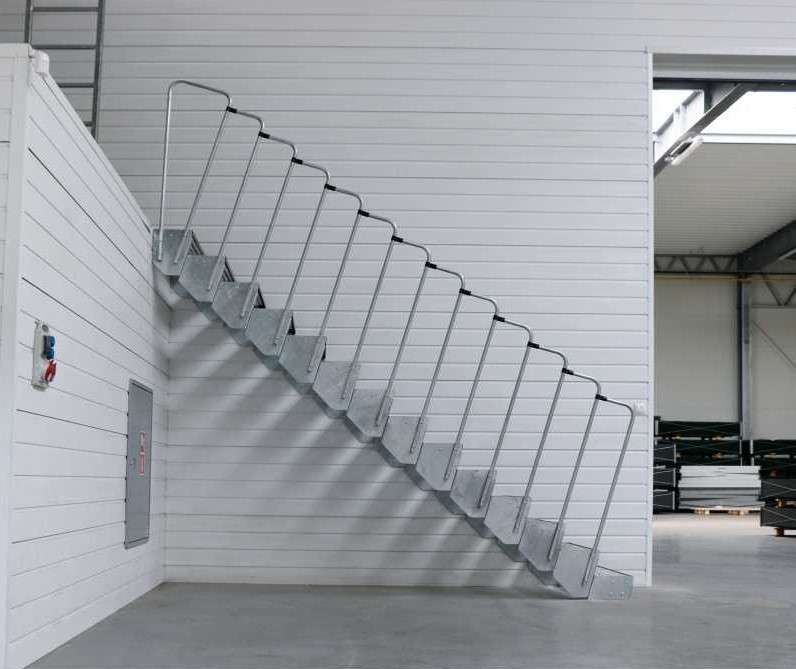

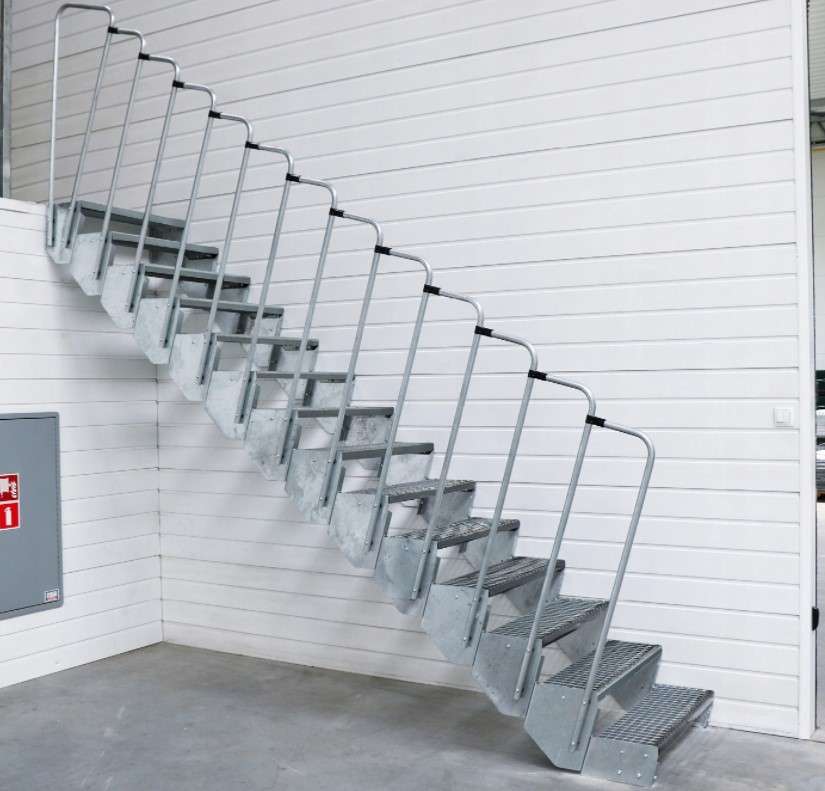

Stair railings	Model #1 Without Filling, Model #2 with Filling, Model #3 Rope Ø 4 mm, Model #4 Tube Ø 12 mm, Model #5 Post (safety compliant according to standard) with metal handrail
Slope height per step	17 – 20 cm
Step measurements	89.8 ×26.0 cm
Free passage width	89,8 cm
Step width	96,2 cm
Step Depth	28 cm
Depth of performance	24.1 – 24.9 cm (depending on the set step height)
Load capacity	125 kg per step
