d’OPERA S20 R5
Features:
- Sleek, open design: Wall-mounted steps for a light, modern look – ideal for interiors of any style.
- Individually selectable step width between 60 cm and 100 cm
- High-quality materials: 40 mm thick beech wood steps with beveled edges, combined with metal railings and six parallel wires.
- Robust construction: Steps are attached directly to the outer walls of the stair hole by means of bolts and metal spacers.
- Durable surfaces: metal parts epoxy powder coated; wood treated with “NATURAL OIL”, available in four colours; anti-slip “BRUSH” step processing.
- Tested safety: CE certified with European Technical Approval (ETA 19/0307)
Brand: d’OPERA (IT)
Delivery time: 2-3 weeks
Price range: 1.188,00 € through 4.842,00 €

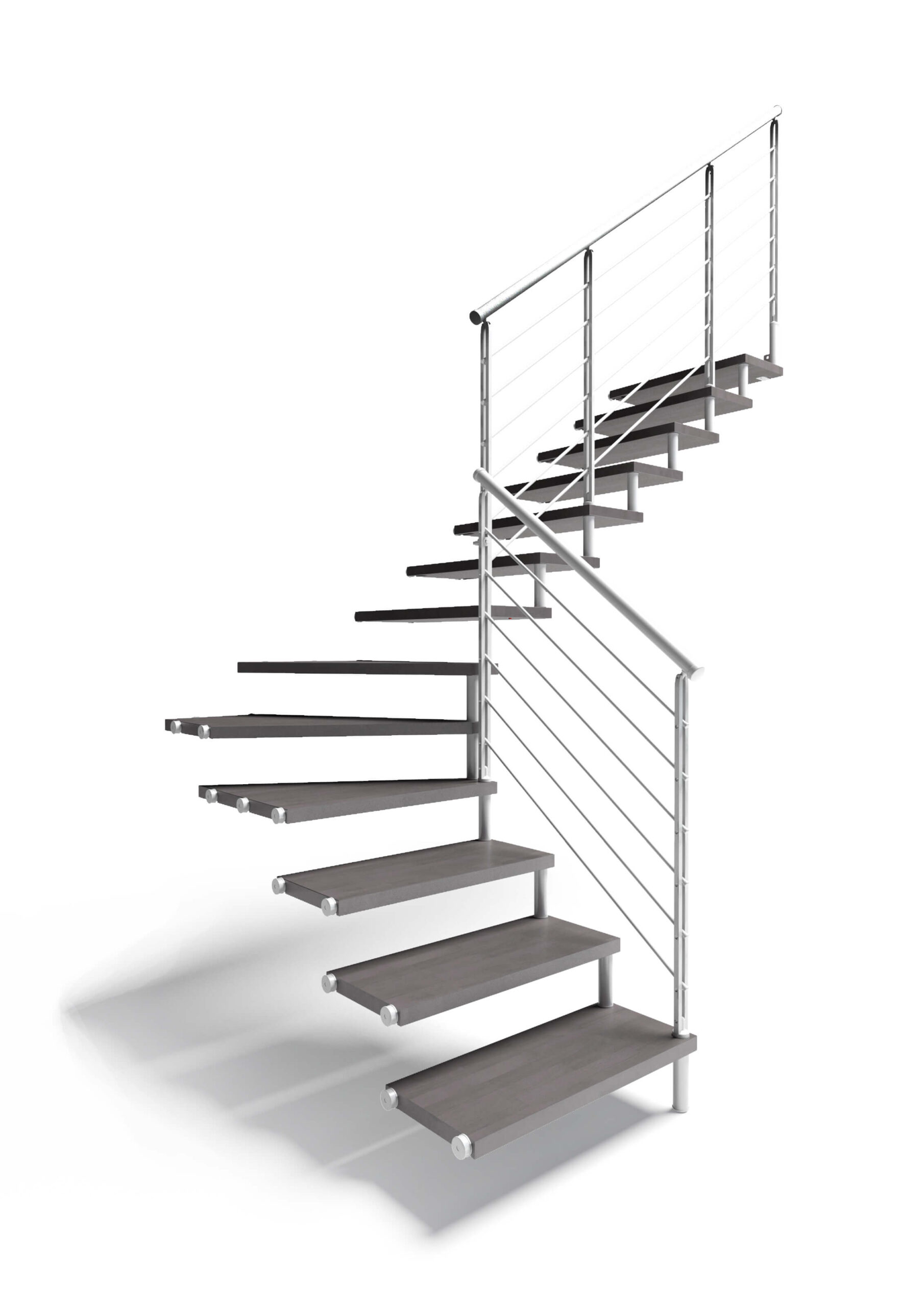

Configurable staircase S20 GL R5

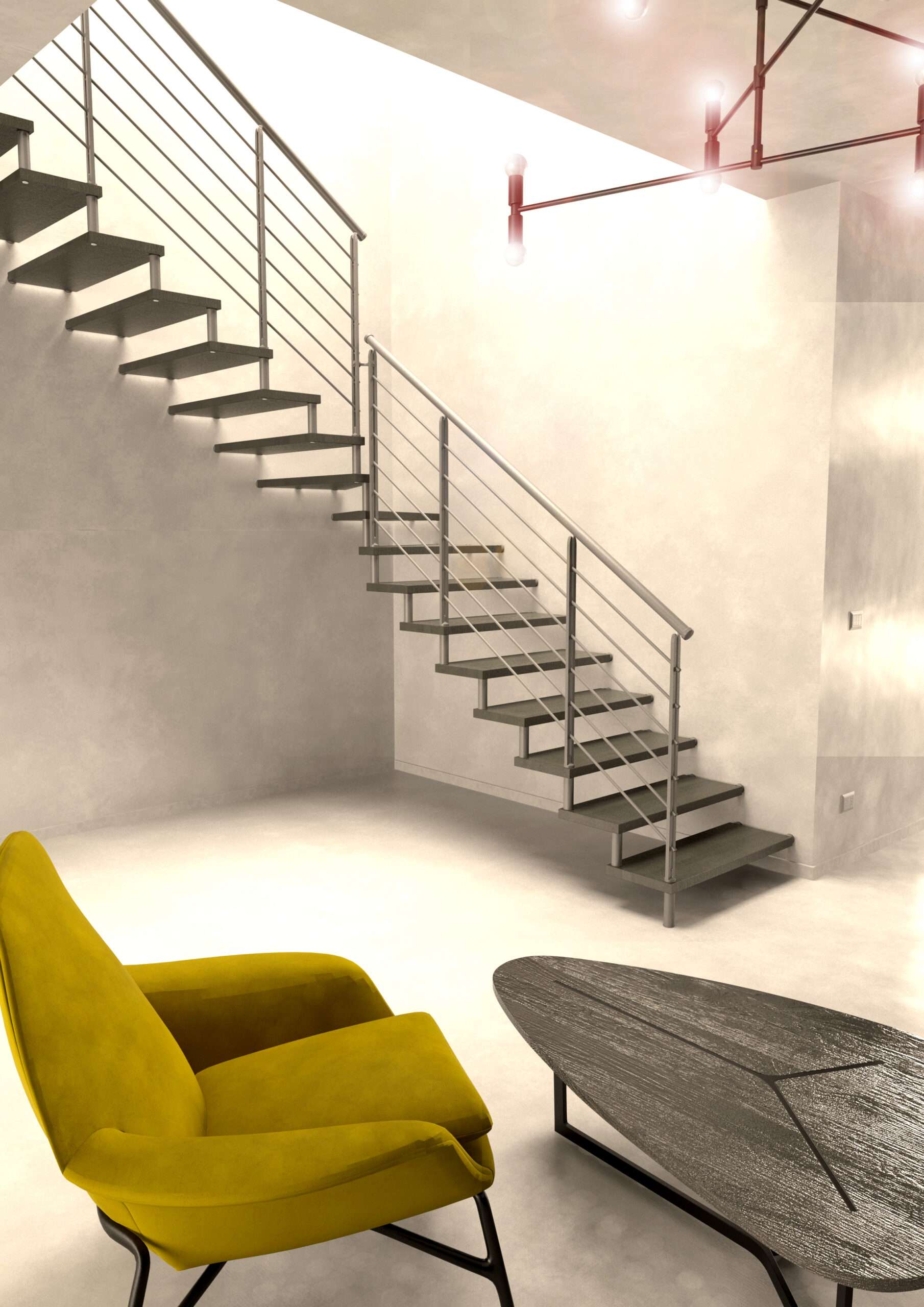

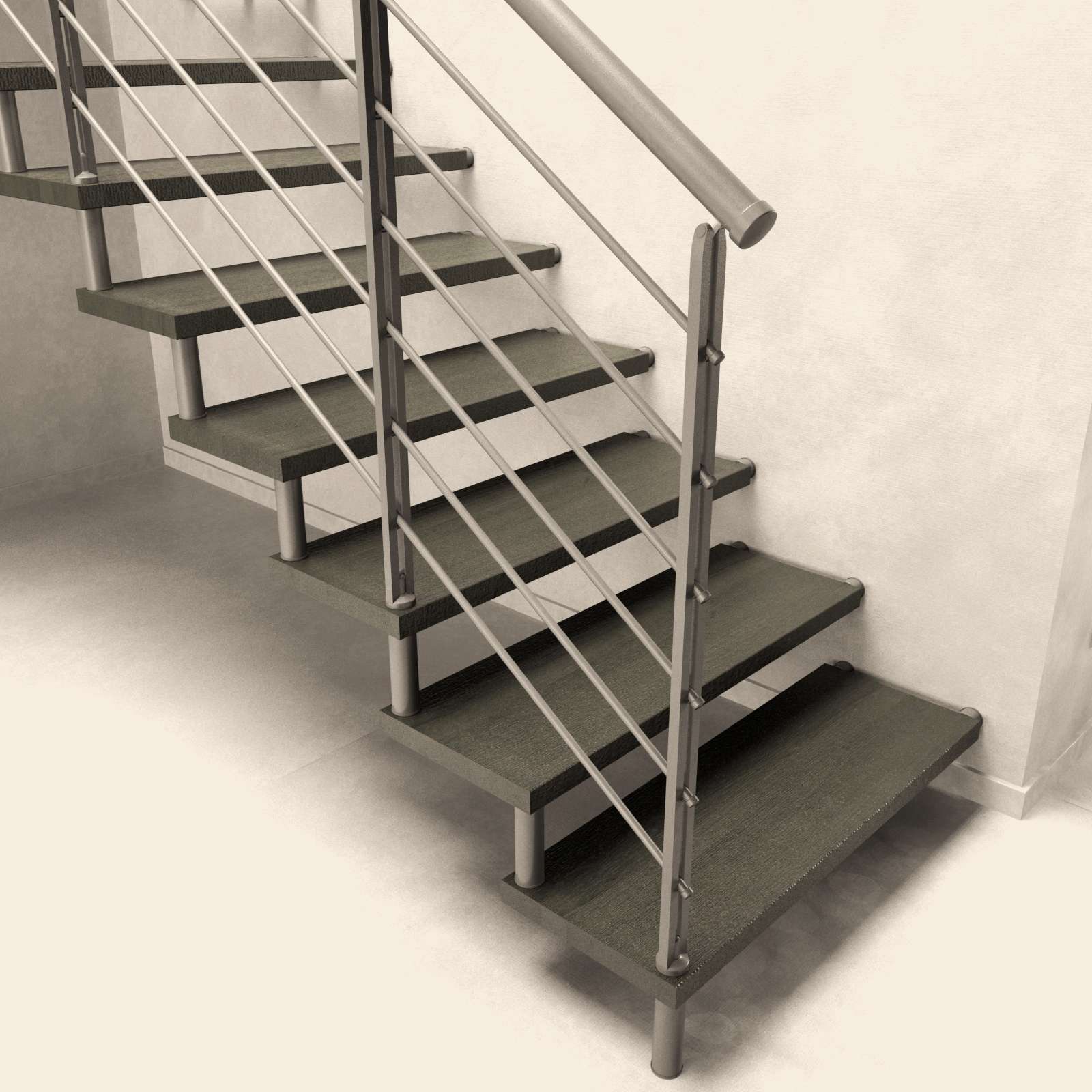

The open staircase with steps fixed directly to the wall elegantly combines different materials to obtain a beautiful, essential and easy-to-assemble staircase.
Ideal for indoor use, the staircase adapts to any type of environment thanks to its simple and clean lines.
Each element of the staircase and the shades are designed to harmonize with the unique style of the product.
The structure
Composed directly from the outer walls of the stair hole, to which each individual step of the staircase is attached by the respective bolts and metallic spacers.

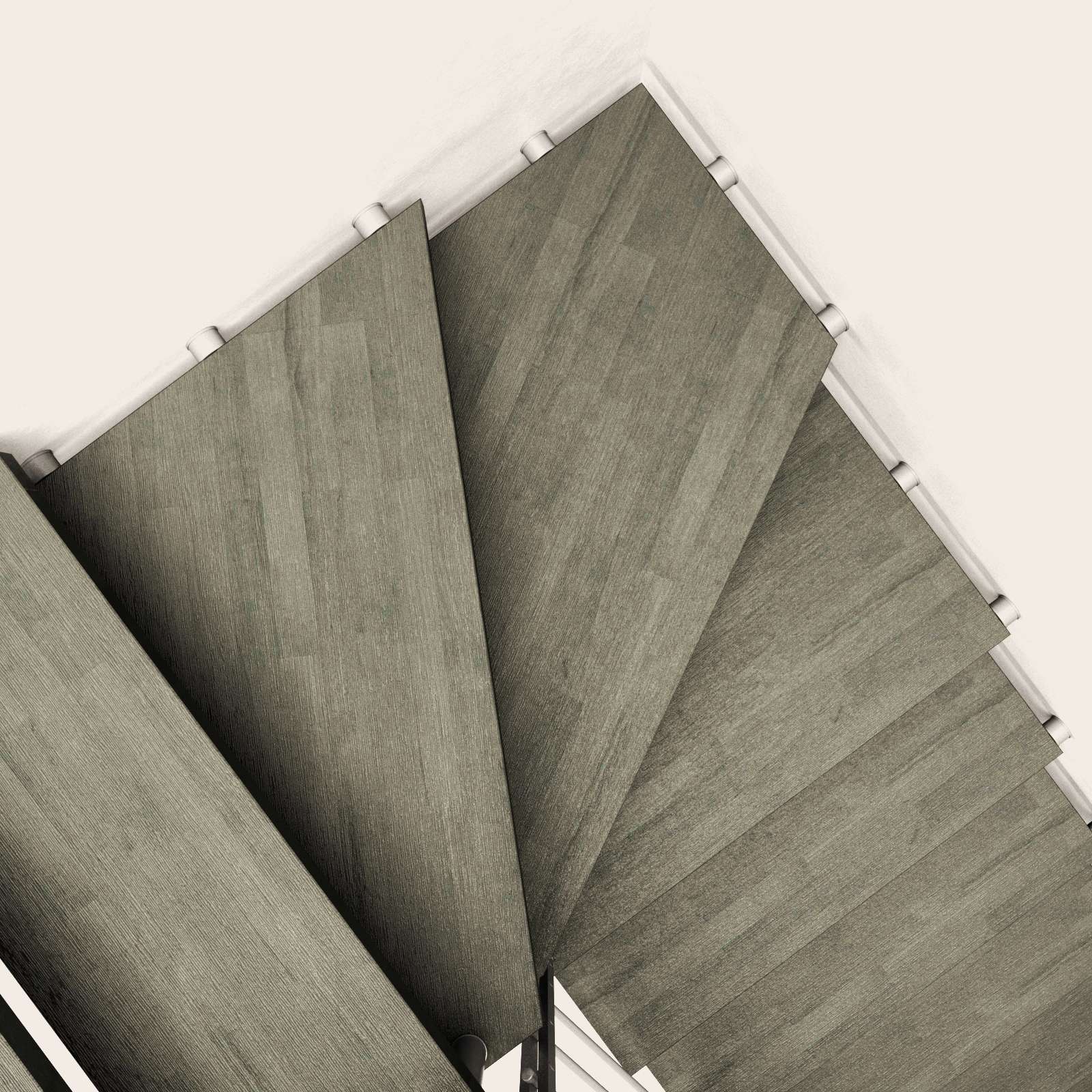

The Steps
The steps are made of 40 mm thick laminated beech wood with bevelled edges.

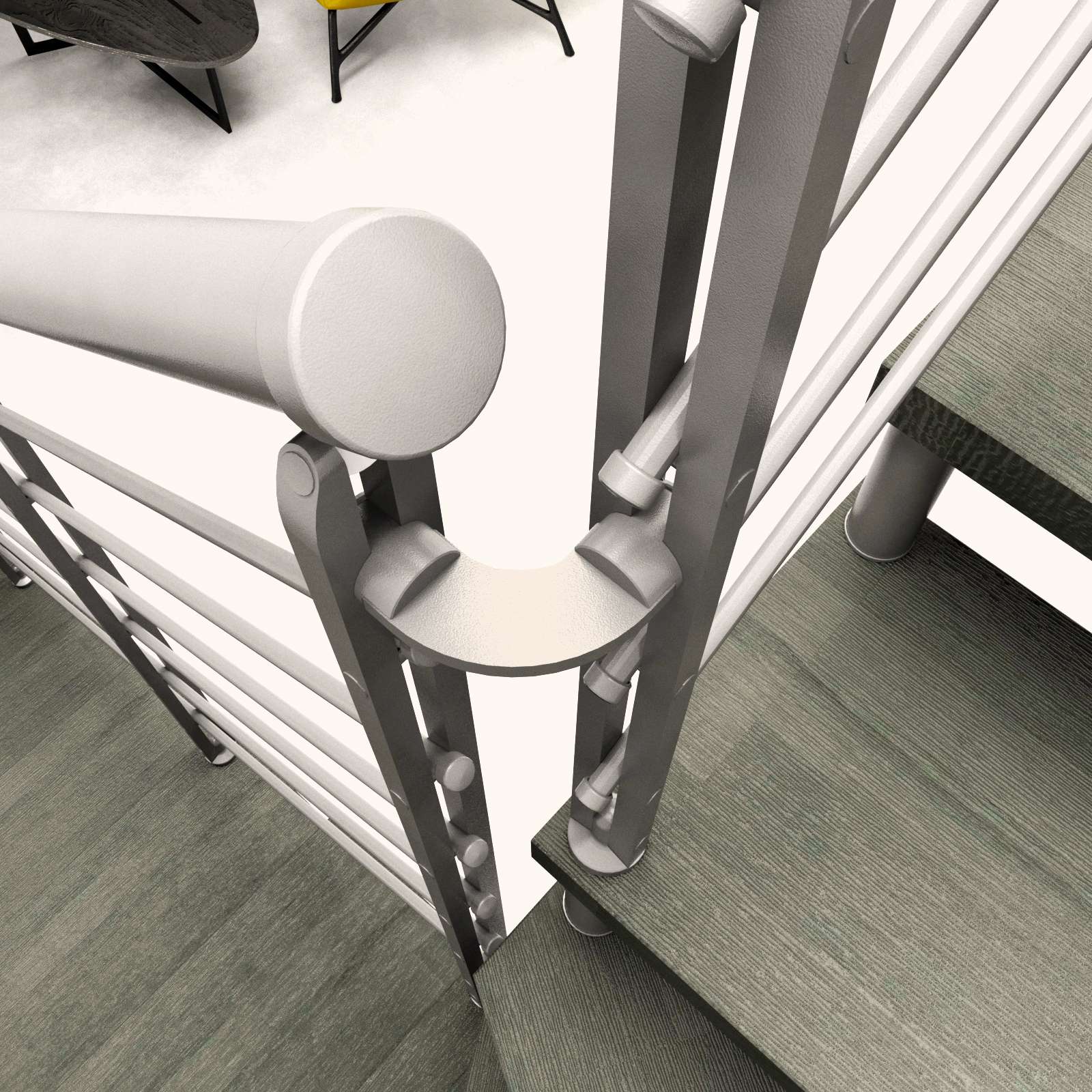

The railing
The railing is made of posts consisting of a double square steel bar with 6 parallel wires that follow the shape of the stairs. The handrail is made of metal and the connectors are made of plastic in the same color.
Metal treatment
All metal elements are coated with high-quality epoxy powder.
Wood treatment
The wooden surfaces are treated with a combination of waxes and natural oils (“NATURAL OIL”) and are available in four colour variants – the optimal solution for long-lasting treads.
Surfaces of the steps
The steps have a unique anti-slip “BRUSH” finish, certified in accordance with Ministerial Decree No. 236 of 14/06/1989.
Certification
CE certified product with European Technical Approval (for stairs up to 16 steps), ETA 19/0307.
| Application area | Interior |
|---|---|
| Mounting | Ceiling |
| Design | Gerade, L-Form, U-Form |
| Step material | Beech – Oak, Beech – Stone, Beech – Walnut, Beech – Wenge |
| Railing bars | Stahl pulverbeschichtet in Bronze, Grau, Schwarz oder Weiß |
| Bottom rails | Stainless Steel |
| Handrail | Wood, PVC |
| Colour Construction | Black, Bronze, Grey, White |
| Floor height / number of steps | 10 steps / 11 inclines for 198 – 242 cm, 11 steps / 12 inclines for 216 – 264 cm, 12 steps / 13 inclines for 234 – 286 cm, 13 steps / 14 inclines for 252 – 308 cm, 14 steps / 15 inclines for 270 – 330 cm, 15 steps / 16 inclines for 288 – 352 cm, 16 steps / 17 inclines for 306 – 374 cm, 17 steps / 18 inclines for 324 – 396 cm, 18 steps / 19 inclines for 342 – 418 cm, 4 steps / 5 inclines for 90 – 110 cm, 5 steps / 6 inclines for 108 – 132 cm, 6 steps / 7 inclines for 126 – 154 cm, 7 steps / 8 inclines for 144 – 176 cm, 8 steps / 9 inclines for 162 – 198 cm, 9 steps / 10 inclines for 180 – 220 cm |
| Maximale Geschoßhöhe bis | 418 cm |
| Rise height per step | 18 – 22 cm |
| Step width | 60 – 79 cm, 80 – 100 cm |
| Free passage width | 60 – 79 cm, 80 – 100 cm |
| Railing height | 90 cm |
| Tread depth | 22 – 28 cm |
| Stair railings | Single-sided with PVC handrail, Single-sided with wooden handrail, Without stair railing |
