Type 1 Passiv Plus
Features:
- Highly insulated passive house loft staircase from Austria
- Fire retardant EI260 tested according to EN1363 and EN1634
- Airtightness class 4
- U-value: 0.33 W/m2K

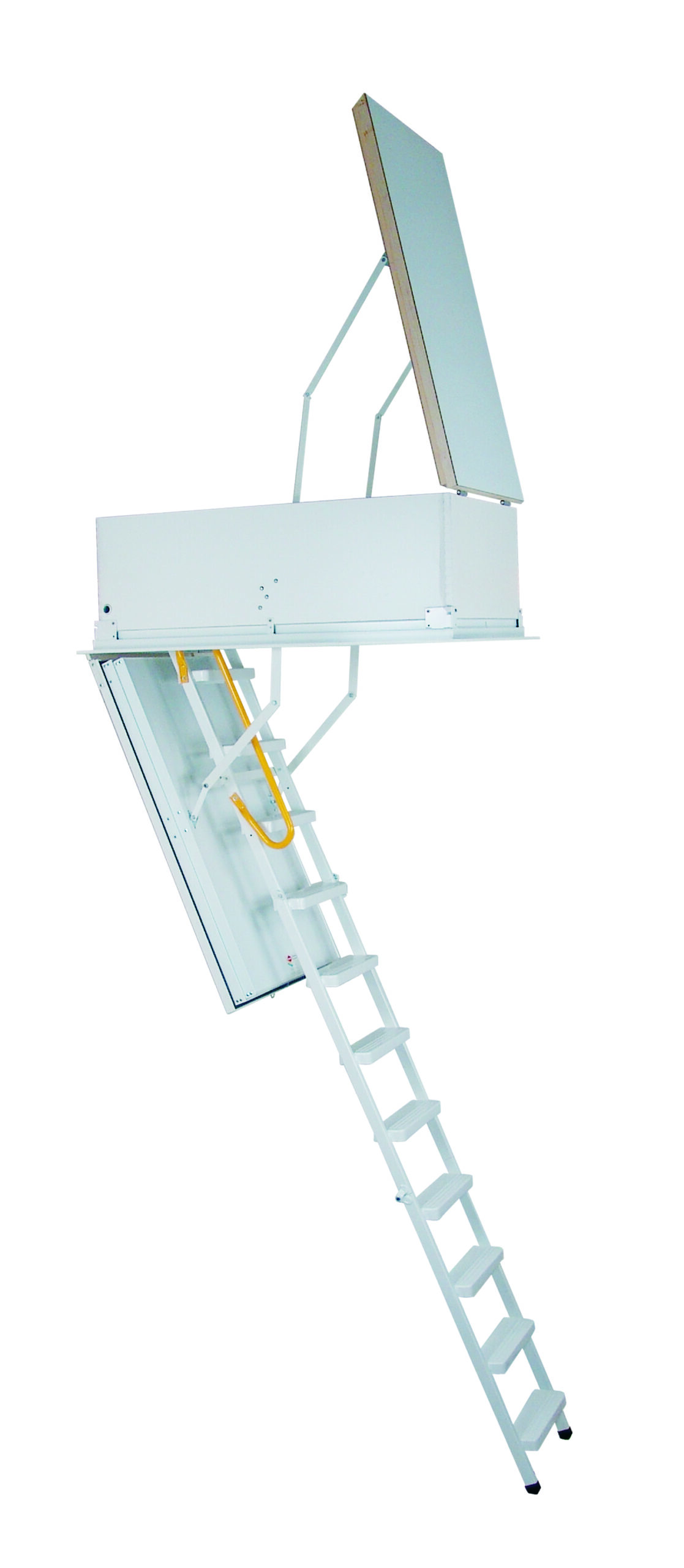

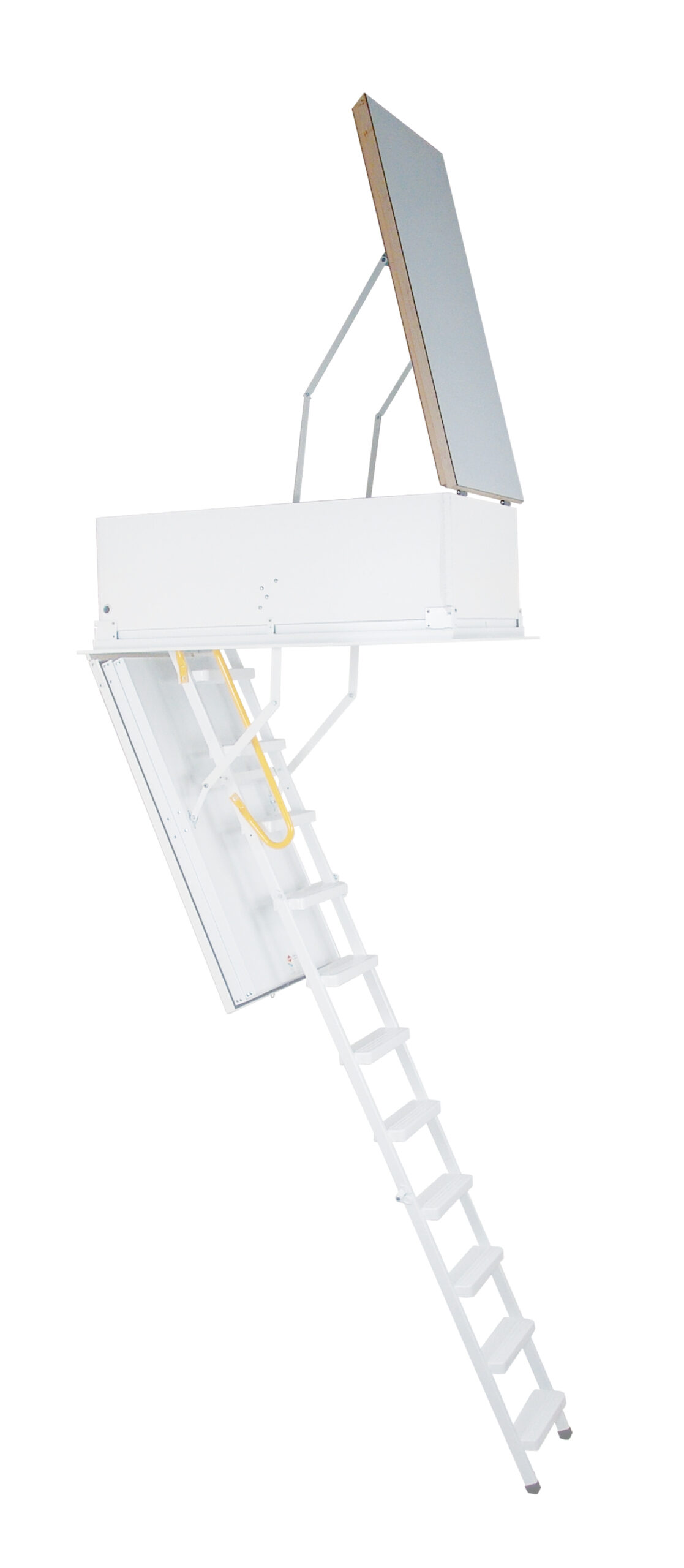

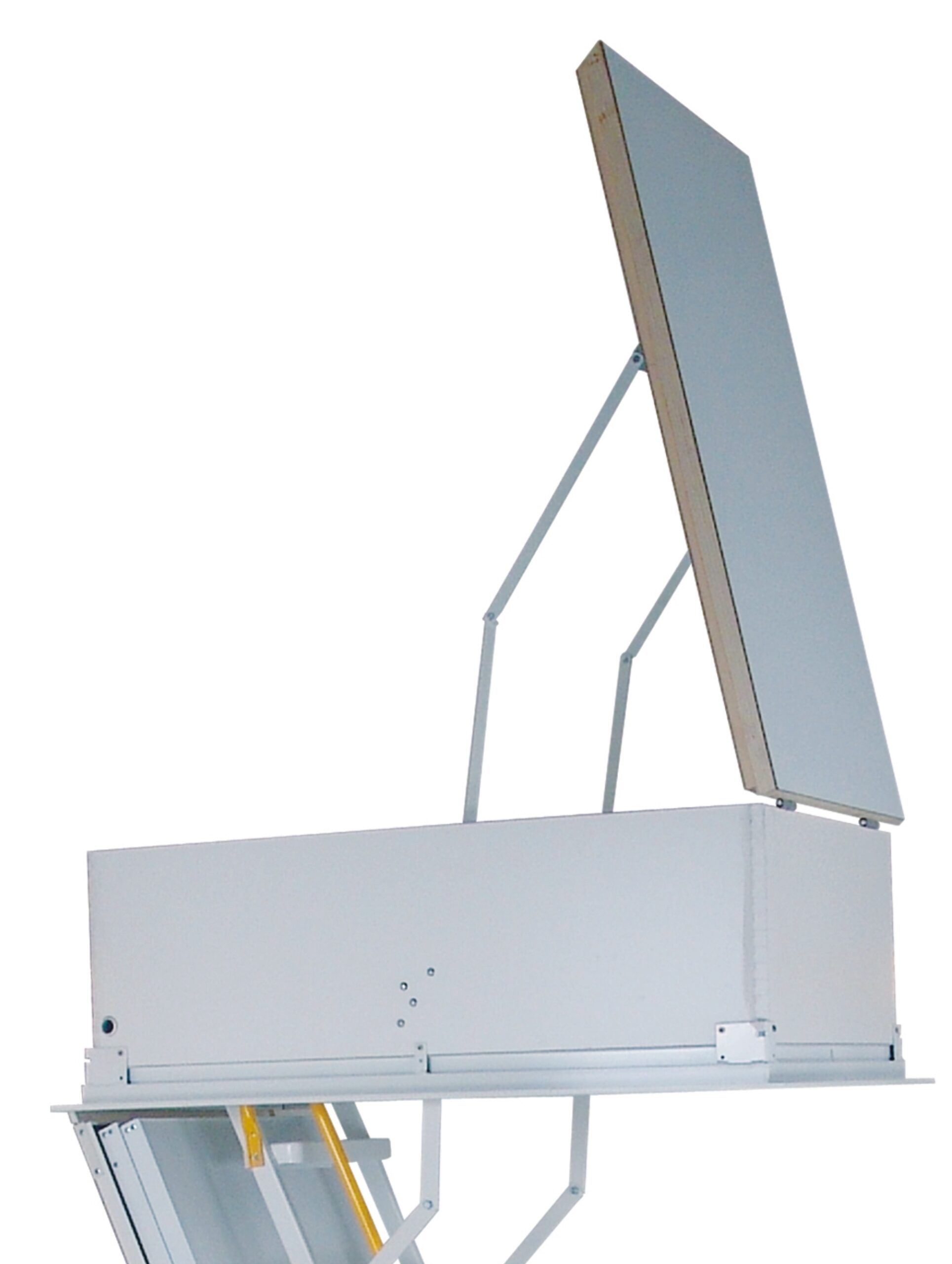

- U-value with ISO top cover: 0.19 W/m2K
- Available in four different sizes: 110×70, 120×70, 130×70 and 140×70 cm
- Maximum room height: 3000 mm
Brand: Minka (AT)
Delivery time: 2-3 weeks
930,00 €
Description:

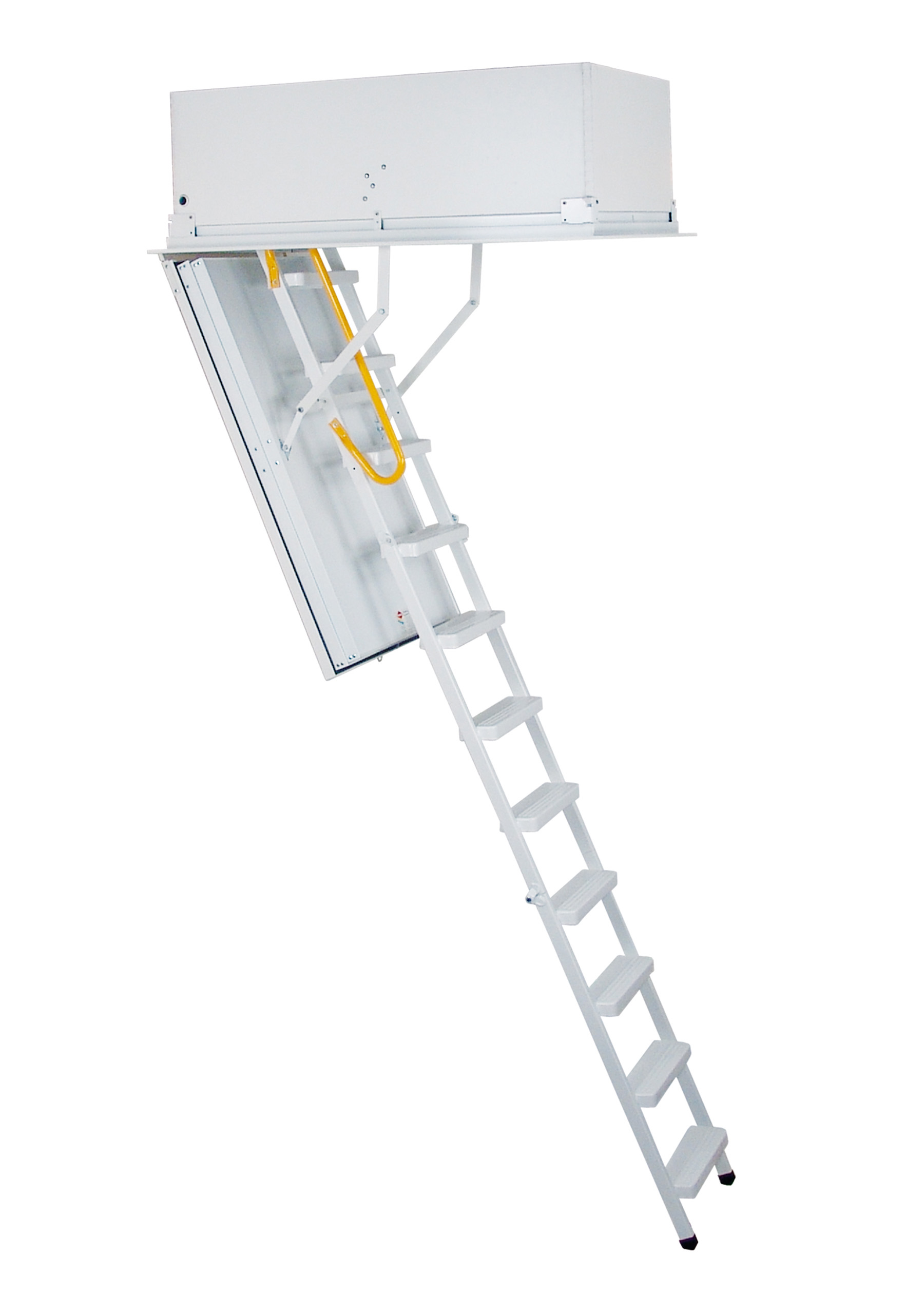

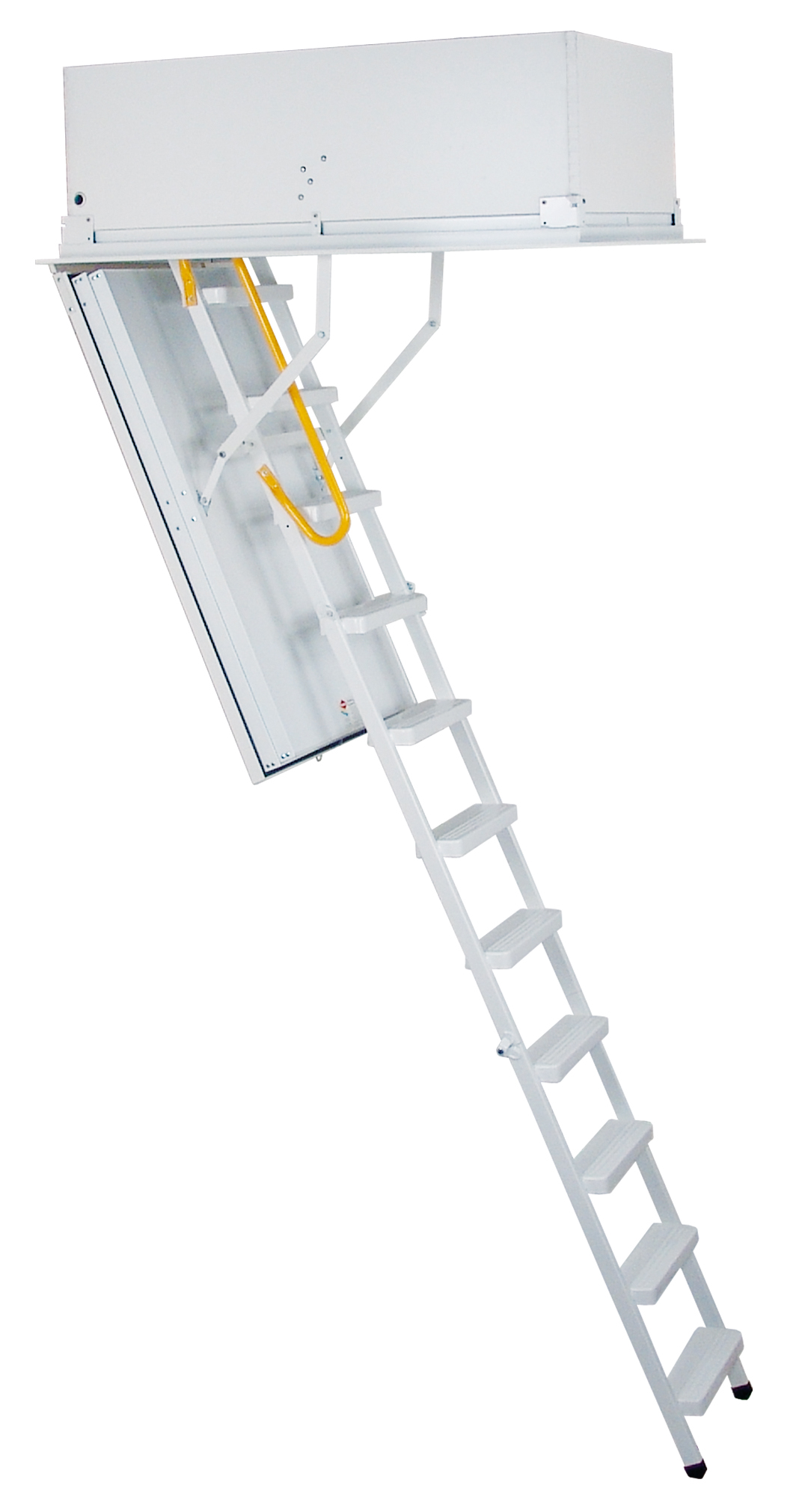

The Type 1 Passive Plus attic staircase from Minka, which is suitable for passive houses, convinces with its excellent insulating power. It has a top U-value of 0.33 W/m2K without upper cover and 0.19 W/m2K with ISO upper cover as well as an airtightness of class 4. In addition, the Type 1 Passive Plus is fire-retardant EI260, tested according to ÖNORM EN1363 and EN1634. Thus, it has been proven to achieve a fire resistance duration of at least 60 minutes.
Flexible Design:
The Type 1 Passive Plus is suitable for ceiling openings measuring 110×70 cm, 120×70 cm, 130×70 cm and 140×70 cm. Depending on the size, it can be used up to a room height of 300 cm. Optionally, there is the staircase with a divided middle section, which means that no fold-out space is required. Except for the yellow safety handrail, the entire attic staircase is kept in a simple white.
Sustainable use:
The metal of the Type 1 Passive Plus loft staircase is surface-finished with a powder coating. This makes the material extremely wear-resistant and resistant. Thanks to the stable steps, the position of the last step in the feed box and the included steel handrail, the Type 1 Passive Plus loft staircase enables a pleasant and safe ascent and descent.
| Application area | Interior |
|---|---|
| Step material | Steel |
| Ceiling opening | 110 x 70 cm, 120 x 70 cm, 130 x 70 cm, 140 x 70 cm |
| Maximale Geschoßhöhe bis | 265 cm, 270 cm, up to 300 cm |
| Hatch box (L x W x H) | 109 x 69 x 45.5 cm, 119 x 69 x 45.5 cm, 129 x 69 x 45.5 cm, 139 x 69 x 45.5 mm |
| Unfolding space | 60 cm, 50 cm, 50 cm, 30 or 40 cm |
Technical documentation
Installation Instructions_Type 1 Passiv Plus
Installation Instructions_Type 1 Passiv Plus_ISO Top Cover
Installation Instructions_Type 1 Passiv Plus_Passiv Plus with Top Cover
Technical Data Sheet_Type 1 Passiv Plus
